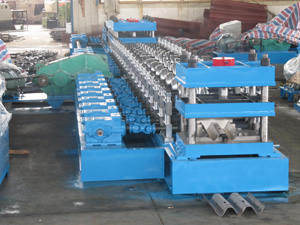

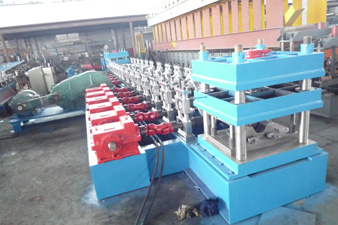

Profile show

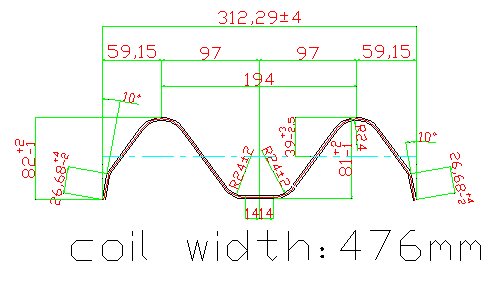

Profile Drawing

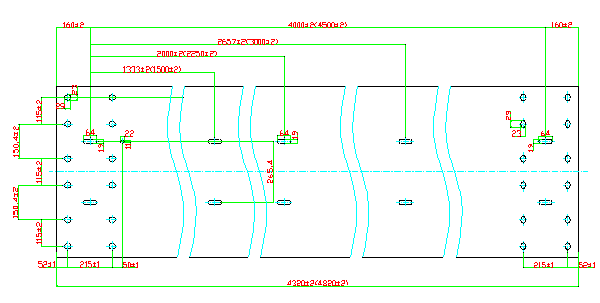

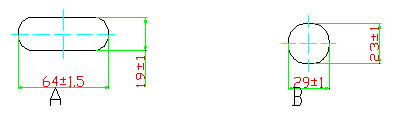

Punching for two wave profile: (depending on customer request to design)

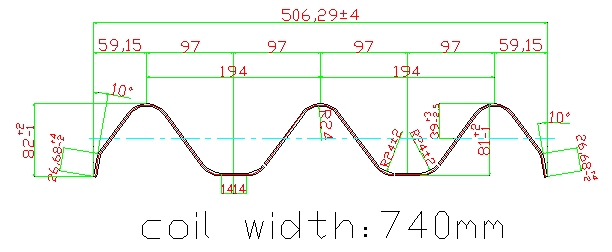

Three waves profile: (depending on customer request to design)

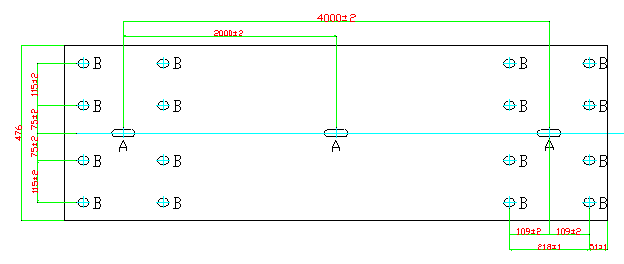

Punching for three wave profile: (depending on customer request to design)
The equipment flow:
(just for reference, the exact one should be send to customer in one month after confirm order)
NO. |
Items |
Unit |
Main specification |
1 |
Material thickness |
mm |
2-3.5 |
2 |
Forming speed |
m/min |
12-15 |
3 |
Roll station |
/ |
20 stations(depend on the profile) |
4 |
Main power |
kw |
45 |
5 |
Hydraulic power |
kw |
11 |
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
7 |
Drive |
/ |
GEARBOX drive |
8 |
Decoiler |
5T |
hydraulic decoiler |
 |
