The profile:
The thickness of sheet: 2mm---3.5mm cold rolled or galvanized steel


the holes size drawing:

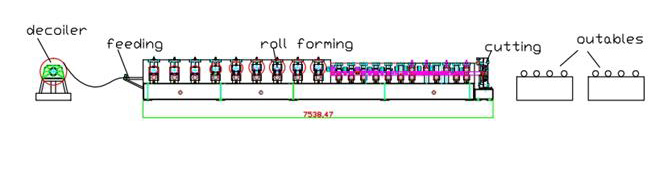

The equipment flowchart:
The production flow of equipment

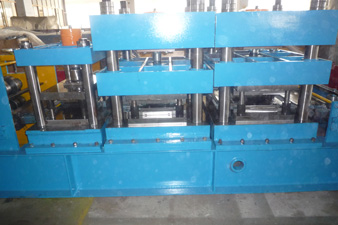

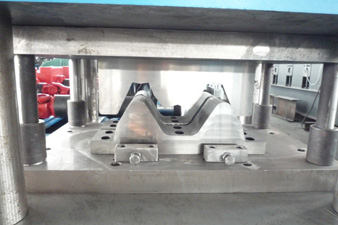

Decoiling—Feeding—leveling----  Punching—roll forming----hydraulic     cut to length—6m stacker

Specifications:

1	Material thickness	mm	2-3.5mm Cold rolled or galvanized steel
2	Forming speed	m/min	18-25
3	Roll station	/	13
4	Coil width	mm	476
5	Coil weight	kw	10000kg
6	Control system	/	PLC panasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	5T/10T	5T/10T/15T hydraulic decoiler ( coil car as option)
