Your present location: Home > Productsproducts Grain Silo Forming Machine

Descrition:

1.We adopts 24forming stations with forged iron stands and 20T hydraulic decoiler and superonice sensor control to sychronize the speed between the roll forming machine and decoiler .The forming machine speed can reach up to 15m/min and stop-to-cut with cutting tolerance within 1.5mm



2 .We adopt gearbox drive to gurantee the machine performance stable and long-term running.
3.Corrugated Silo panels are widely used in the workd market .We have engaged in  supplying the corrugated silo roll forming line to South American markets  since 2008 .With stable performance and good forming product,we gained good reputations from our customers

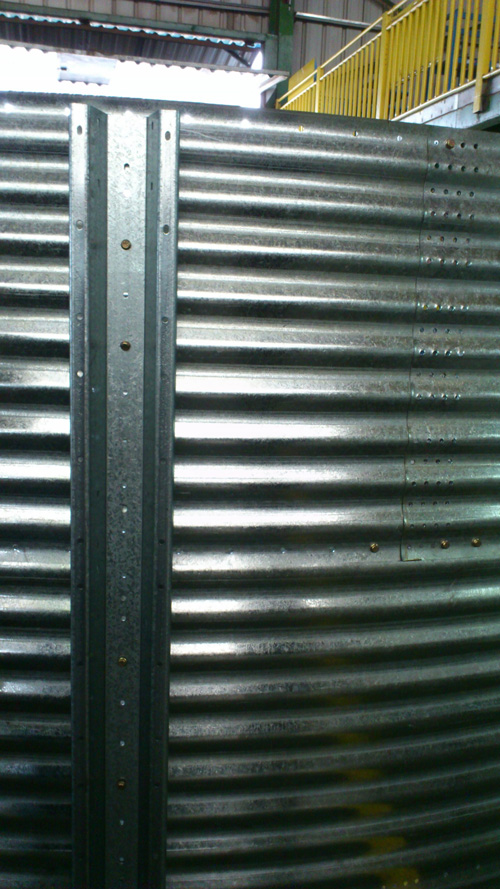

Profile show

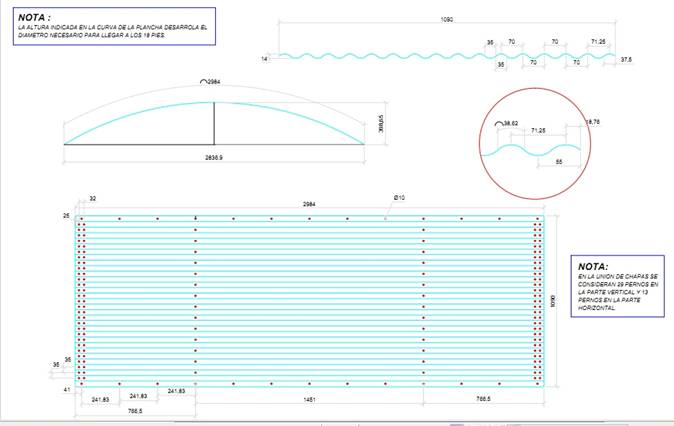

Drawing:



1	Material thickness	mm	0.8--3mm cold rolled steel
2	Forming speed	m/min	12-15
3	Roll station	/	24
4	Main power	kw	45
5	punching		Hydraulic cutting
6	Hydraulic power	kw	15kw
7	Control system	/	PLC panasonic/omron/simens/mitsubishi
8	Drive	/	Gearbox  drive
9	Decoiler		10T/15T/20  hydraulic decoiler(coil car as option)

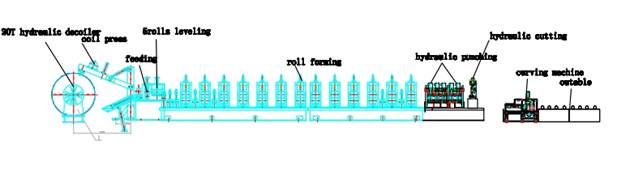

Flowchart:
