Cassette Type Quick-changeable forming machine

Your present location: Home > Productsproducts

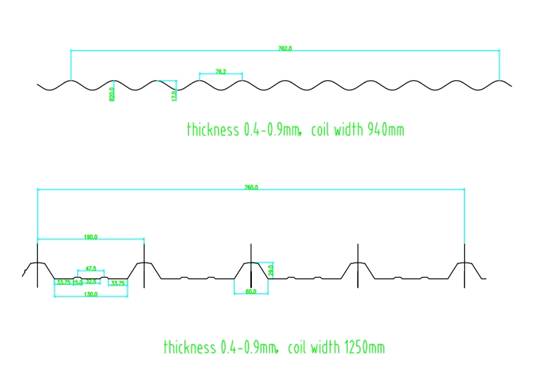

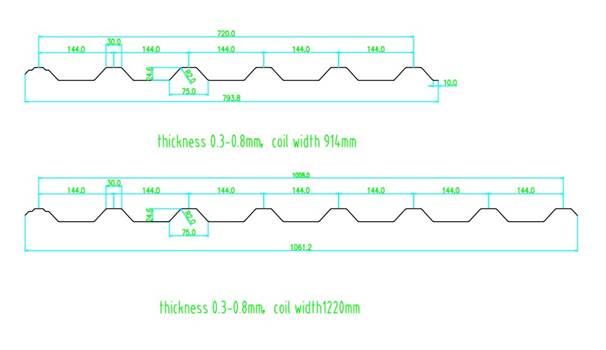

Profile drawing:

Basic specifications

1	Material thickness	mm	0.4-0.8mm Full hard,G550Mpa
2	Forming speed	m/min	35
3	Roll station	/	Depends on the customer’s profile
4	Main power	kw	2-11
5	Hydraulic power	kw	11
6	Way of cutting		Flying shear
7	Control system	/	PLC panasonic/omron/simens/mitsubishi
8	Drive	/	Chain drive
8	Decoiler		10T/15T hydraulic decoiler ( coil car as option)

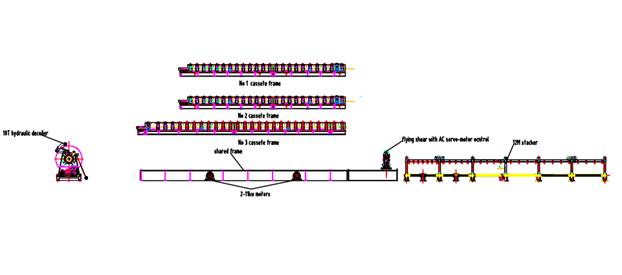

Working Flowchart:(from left to right)
10T hydraulic decoiler→Guiding→Roll forming→flying shear→12M stacker
