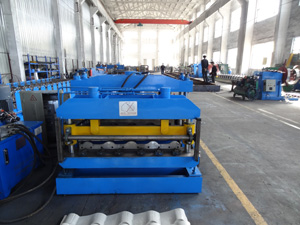

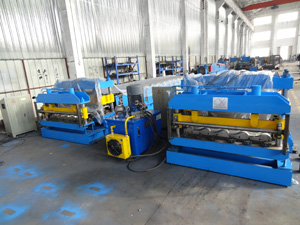

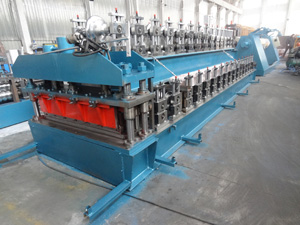

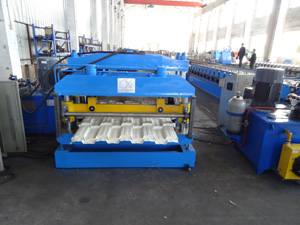

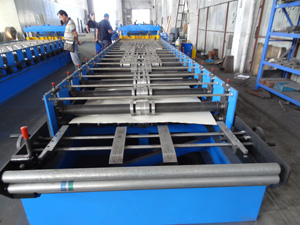

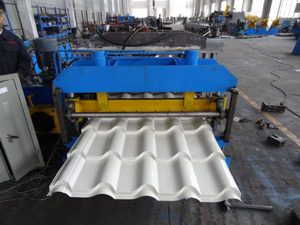

Fast-speed Glazed tile forming machine

Your present location: Home > Productsproducts

Profile show

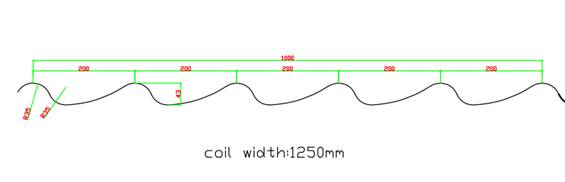

Drawing:

Main Technical specifications:

NO.	Items	Unit	Main specification
1	Material thickness	mm	0.4-0.6
2	Forming speed	m/min	20
3	Line speed	m/min	5--6
4	Roll station	/	18 stations(depend on the profile)
5	Main power	kw	7.5
5	Hydraulic power	kw	7.5
6	Control system	/	PLC, panasonic/Siemens
7	Drive	/	by chain
8	Way of decoiler		5T manual decoiler 5T hydraulic decoiler as an option

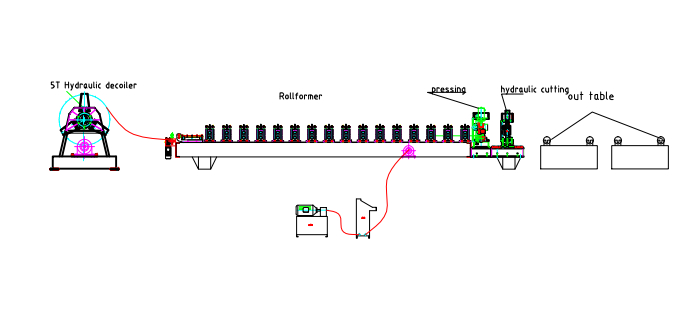

Flowchart:

5 hydraulic decoiler---Guiding---Film covering--- Roll forming machine-- pressing----hydraulic cutting--- Output tables
