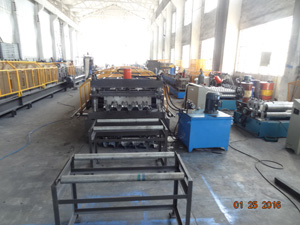

76-900 Full Automatic Metal Deck Forming Machine

Your present location: Home > Productsproducts

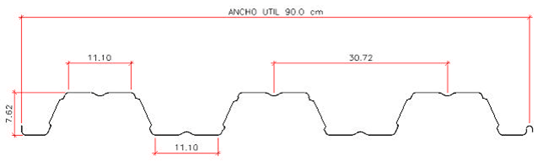

Profile Drawing:

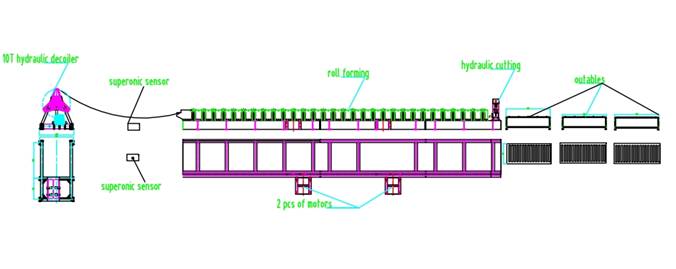

Working Flowchart:(from left to right)
10T hydraulic decoiler→Guiding→Roll forming→hydraulic cutting→Outables

Specification:

NO.	Items	Unit	Main specification
1	Material thickness	mm	1.5-2,5
2	Structure	/	Wall panel structure
3	Roll station	/	35 stations
4	Main power	kw	11
5	Hydraulic power	kw	7.5
6	Control system	/	PLCpanasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive

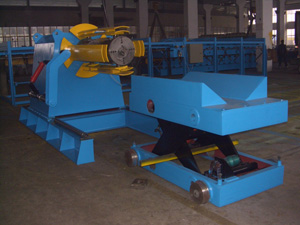

8	Decoiler	10T	hydraulic decoiler
