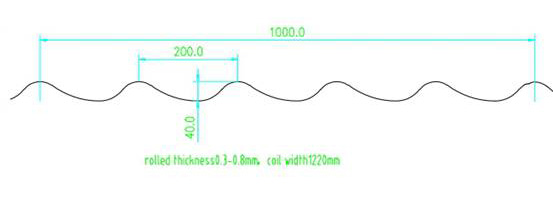

Drawing:
Main Technical specifications:
NO. |
Items |
Unit |
Main specification |
1 |
Material thickness |
mm |
0.2-0.6 |
2 |
Forming speed |
m/min |
18 |
3 |
Roll station |
/ |
16 stations(depend on the profile) |
4 |
Main power |
kw |
5.5 |
5 |
Hydraulic power |
kw |
4 |
6 |
Control system |
/ |
PLC, panasonic/Siemens |
7 |
Drive |
/ |
by chain |
8 |
Way of decoiler |
|
5T manual decoiler |

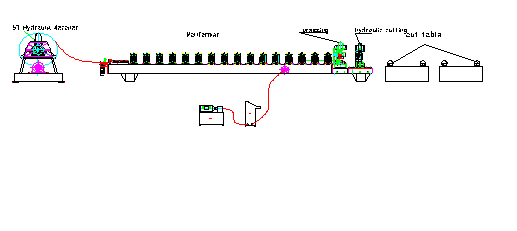

Flowchart:

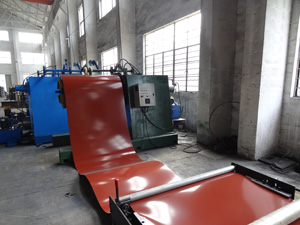

5 hydraulic decoiler---Guiding---Film covering--- Roll forming machine-- pressing----hydraulic cutting--- Output tables
 |
